Fire rated glass partitions

Fire rated glass doors

Protection up to EI90 with design flexibility for internal or external use

  • Single and double doors
  • Side lights and top lights available
  • Supply only or supply and install
  • Fast delivery available
C-CAM-21-10142.jpg?w=683&h=1024&scale

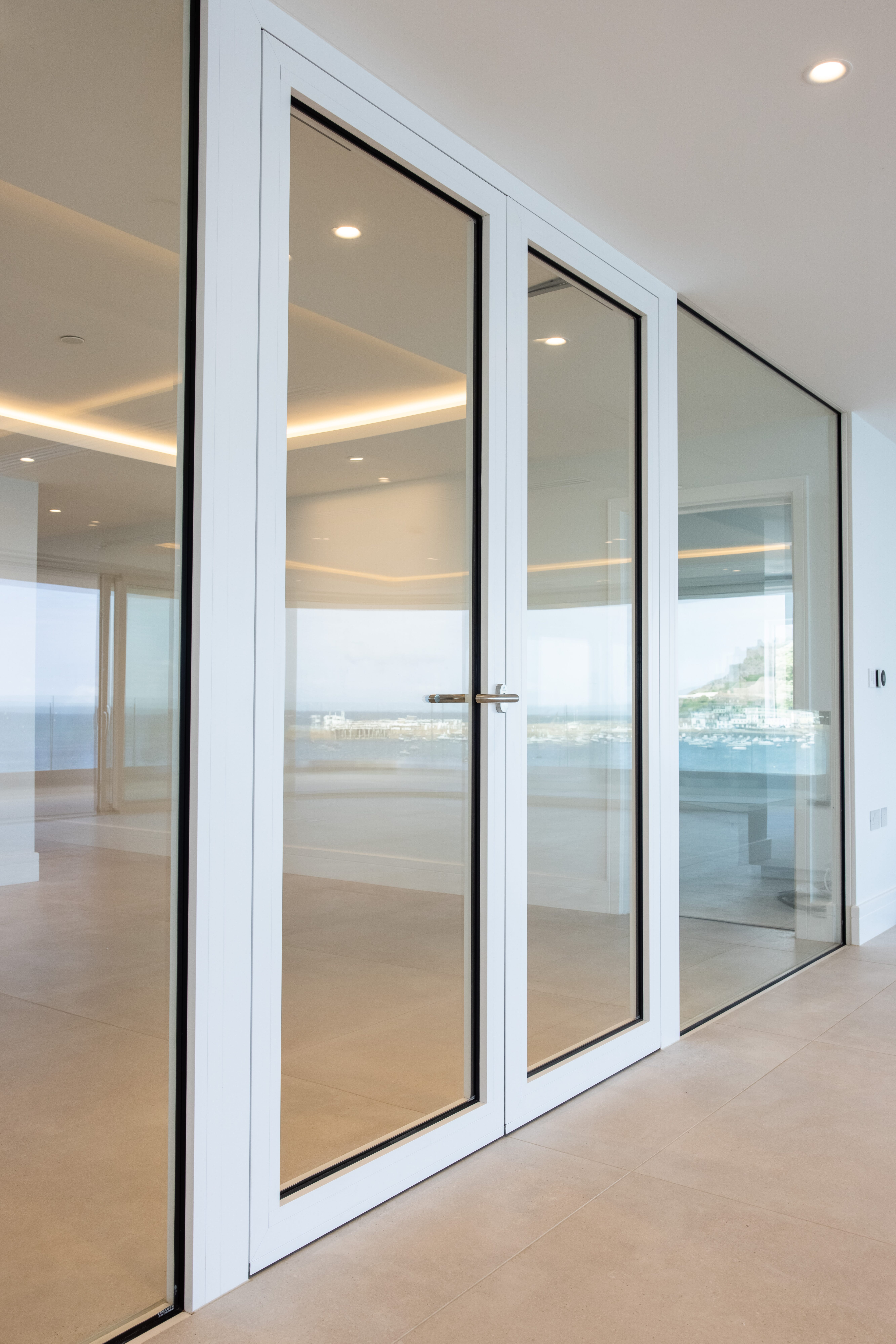

Fire Rated Doors

  • Material: Aluminium
  • Fire rating: EI 30 and EI 60 (external or internal) EI 90 (internal only)
  • Certification: Tested against EN 1634-1 (and EN 1634-3 for smoke), classification against EN 13501-2, performance against EN 14351 and EN 16034 and Certifire TPC
  • Finish: Polyester powder coating to standard RAL and special colours / Anodised
  • Max Sizes: Single: 1400 W x 2500 H Double: 2500 W x 2500 H – can also be incorporated to our fixed screen and curtain walling systems. Can also be used adjacent to non-fire rated equivalent systems
  • Special options: Automatic sliding doors for internal use
VR-025-DA-scaled.jpg?w=1024&h=683&scale

Options

  • Self-closing mechanism – projecting or slide arm (not concealed), powered hold open, power assisted / fully automatic
  • Threshold – low profile and drop down options available
  • Access control – variety of options through use of electric strike (fail secure) through to full auto operation
  • Smoke control – in line with BS EN 1634-3 available for some products.
  • Security – as some of these have been developed before the introduction of specific security levels, it is not always possible to achieve certain ratings.

Protection up to RC2 against EN 1627 or SR1 against LPS 1175.

Products can be configured to additionally provide great levels of energy conservation, acoustic performance and impact resistance.

If you have a competent installer, we can offer some of our door ranges on a supply only basis. Otherwise, we can supply and fit these products through our FIRAS third party certified installers.

For the ultimate in elegant looking fire protection, we also offer the Pyrostyle range of internal steel doors. Click here for further details.

We are proud to be Aluprof’s largest fire rated manufacturer and installer in the UK. We offer the entire range of fire rated products and provide expert technical support.

  • Aluprof MBSR50N EI

    Curtain Walling

  • Aluprof MB78 EI

    Silicone Jointed

  • Aluprof MB78 EI DPA

    Automatic Sliding Door

  • Aluprof MB78EI

    Door

  • Aluprof MB118EI

    Fixed Lights

  • Aluprof MB78 EI

    Fixed Lights

We are one of three of Reynaers Fire Partners in the UK, offering its entire range of fire rated products. Our wealth of site installation experience, especially on larger Reynaers contracts, makes us the safe, straightforward choice when it comes to delivering a fire rated element.

  • Reynaers CW50 FP

    Curtain Wall

  • Reynaers CS77 FP

    Doors

  • Reynaers CS77 FP

    Fixed Lights

Proudly working for some of the most respected names in construction

    Testing

    Testing

    Fully tested and classified systems

    With the successful performance of these products playing such a crucial role in life and building safety it is imperative that the protection they offer is proven. The systems that we offer are subject to rigorous testing with the exact combination of materials to be used. Whilst there are good levels of options available, we can only offer products that are as tested. See our article on fire testing for more detailed information.

    DESIGN-IMAGE.jpg?w=685&h=1024&scale

    Design

    Experienced designers, estimators and technical support

    We understand that the specification and inclusion of fire rated glazing products is highly specialist and often requires a great deal of technical support to ensure that correct design, performance and interfacing are achieved, be it for a single fixed light or complex curtain wall screen. We offer a full design package or assistance to your own design team to ensure crucial details are correctly captured. We are always pleased to provide technical advice on regulations and specifications and help is only ever a phone call away.

    1596OWS-April-2022-Apr-13-2022.jpg?w=1024&h=683&scale

    Manufacture

    Industry leading levels of quality and manufacturing efficiency

    We’ve been making lots of fire rated aluminium glazing products for over 20 years. We are expert users of the Logikal software system used to estimate and programme our production, and having used CNC cutting machines for many years we take pride in the consistently high quality of our products. As we only manufacture fire rated products our time-served fabrication team are highly efficient in assembling the complex suite of components required for these products. All this combines to ensure that we have the capacity to handle the largest of projects without compromising on quality.

    1700OWS-April-2022-Apr-13-2022.jpg?w=1024&h=683&scale

    Supply

    A simple, workable solution for your product requirements

    If you are confident around the competence of your installers, we offer many of our products on a supply only basis, including a kit of everything that you need to undertake a successful installation. As we work with a number of suppliers we can offer the most sensible and compliant solution for your requirement without limiting options to a single range. We will seek to provide you with a comprehensively detailed quotation with a quick turn around. Once you have placed your order, we offer:

    • Speedy deliveries – we specialise in these products and supply from a single site. Our processes are well developed and efficient, resulting in shorter lead times
    • Dedicated deliveries – we can be flexible in when we delivery to align with your requirements
    • All in the box – we deliver all the fire rated consumables required to successfully install your products, including a fitting manual and a self certification checklist
    • Installation support – telephone access to appropriate experts throughout the process
    IMG_0884_Momen1.jpg?w=576&h=1024&scale

    Install

    Third party certified project installation services

    We have many years experience working on major projects for contractors and fully understand the associated challenges. Our industry leading products are great, but for additional peace of mind we offer a greater level of engagement that allows you to get the full benefits of our fire rated glazing expertise from the wider team within our company, including:

    • Experienced Project Manager
    • Fire Rated only fitters – this is all we do, so our installers have experience of fitting these complex products every day
    • Creation of RAMS and O&M manuals and supply of data sheets
    • Installation audit, FIRAS inspection and sign-off on completion of project
    • Indemnity against installation damage
    • Legitimacy – in the form of as built drawings and certification of provenance and consistency
    OWS Fire Accreditations
    OWS Fire Accreditations
    OWS Fire Accreditations
    OWS Fire Accreditations
    OWS Fire Accreditations
    OWS Fire Accreditations
    OWS Fire Accreditations

      Statement

      We have worked with OWS Fire Rated for a number of years now and we have found them to be professional and customer-driven.  Their knowledge of fire-rating products and the regulations is dependable and up-to-date so we know we can talk to them about our specific needs.

      Will Chan, Business Development Manager, Sealtite Group

      Have a question or need a quote?
      We are here to help

      Call us on +44 (0)1342 836630 to discuss your fire rated install requirements
